2L/H Compact Lab Spray Drying Machine with Touch Screen Control for Sale

Name: 2LH Compact Lab Spray Drying Machine with Touch Screen Control for Sale
Brand: Lanphan
Price: 1999 USD

Quality 2L/H Compact Lab Spray Drying Machine with Touch Screen Control for Sale for sale

Brand Name : Lanphan

Supply Ability : 500 Units per Month

Heating Method : Electric Heating

Certification : CE

Place of Origin : Henan

Delivery Time : 5-12 work days

Packaging Details : Wooden Box or Customized Packing

Price : $1999/unit

MOQ : 1 unit

Evaporation : 2L/H

Nozzle Diameter : 1.00mm (Optional)

Model Number : LPSD-2G

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Electric heater power : 3.5kw AC220V

Product Name : Spray Drying Machine for Sale

Dimension : 600*700*1200(mm)

Air compressor power : 1.2kw, The Largest Gas Production 4.2 M3/H

Maximum Quantity of Wind : 5.6m3/Min

Contact Now

2L/H Compact Lab Spray Drying Machine with Touch Screen Control for Lab Research

Spray Drying Machine for Sale Parameter

Product Model	LPSD-2G
Air inlet temperature control	30~300ºC
Air outlet temperature control	30~150ºC
Evaporated water	1500ml/h~2000ml/h
The largest feed rate	2000ml/h
Feeding way	Peristaltic pump adjustment
Electric heater	3.5KW AC220V
Draught fan	0.55KW
Maximum quantity of wind	5.6 m3/min
Maximum air pressure	1020 Pa
Air compressor	1.2 KW, the largest gas production 4.2 m3/h
Nozzle diameter	1.00 mm /0.04inch(optional)
Package dimension (LWH)	6007001200(mm)
Weight	125KG(275.58lbs)

Spray Drying Machine for Sale Show

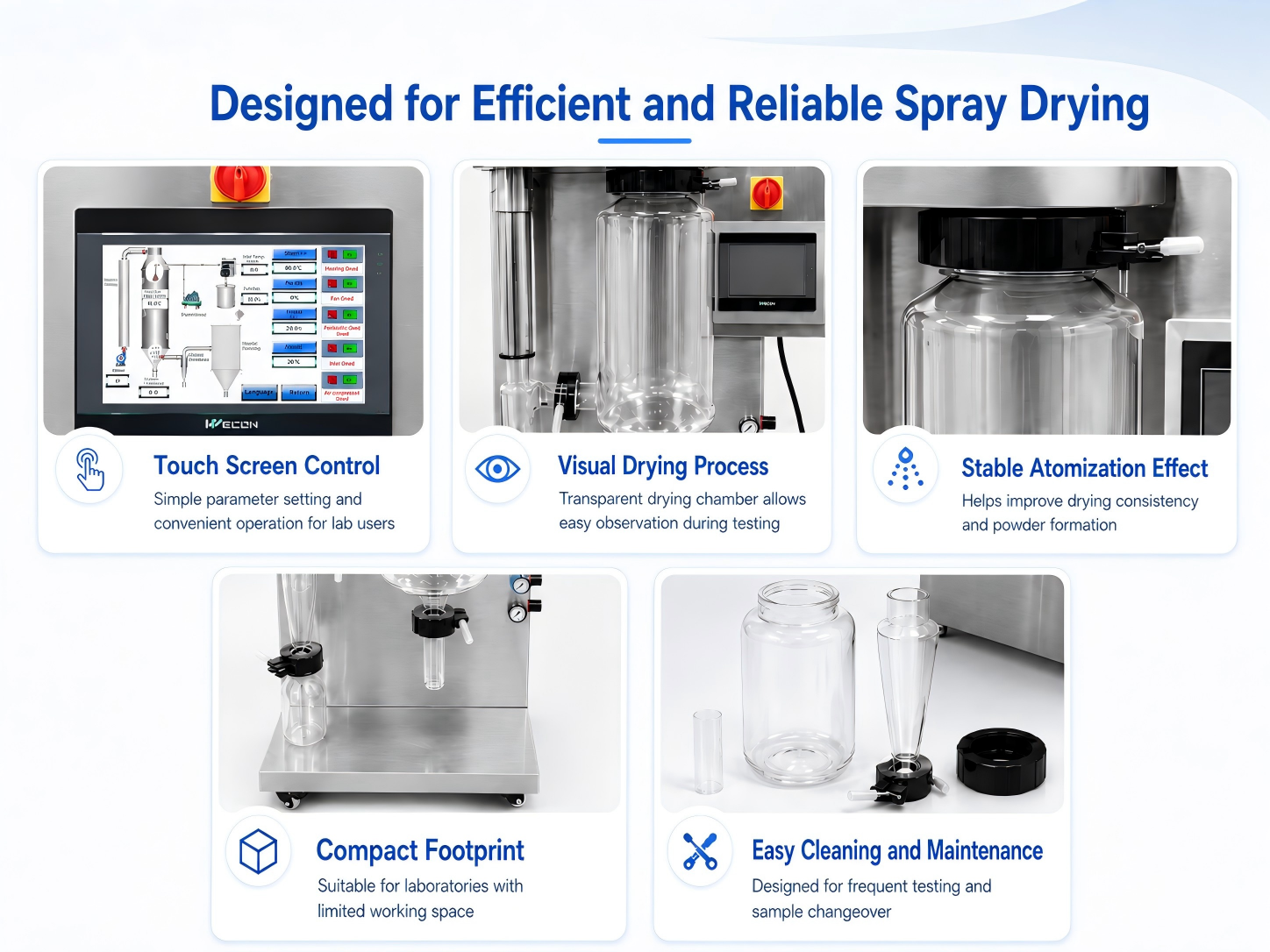

The laboratory spray dryer (small spray dryer) has a compact structure and can be installed alone in the laboratory or on a dedicated stainless steel rack. It is self-contained and can be used without any additional equipment. One-button operation, a large color LCD touch screen, and two operating modes—fully automatic and manual—facilitate the execution and monitoring of the test process. This spray dryer has the smallest volume, the lowest noise level, and the best drying effect.

We have developed a spray dryer specifically for heat-sensitive materials that cannot withstand high temperatures. The model is based on the principle of saturated air humidity and allows for drying and shaping experiments on liquid materials at atmospheric pressure and low temperatures (approximately 30 to 65°C). The original activity of the material is maintained, improving the drying and shaping effect and recovery speed. Used in food and beverage industry, plant extracts, chemical materials, etc.
